日本广州GS蓄电池TEV12260 AGV 小车 动力蓄电池12V-26AH包运
型名 | 電壓(V) | 容量 | 外觀尺寸(mm) | 重量約(kg) | 端子 | ||||
20小時率(Ah) | 長度 | 寬度 | 高度 | 總高 | 型式 | 位置 | |||
TEV12120 | 12 | 12 | 151±1 | 98±1 | 94±1 | F2(98±2), B1(104.5±2) | 4.35 | F2,B1-a | D,M |

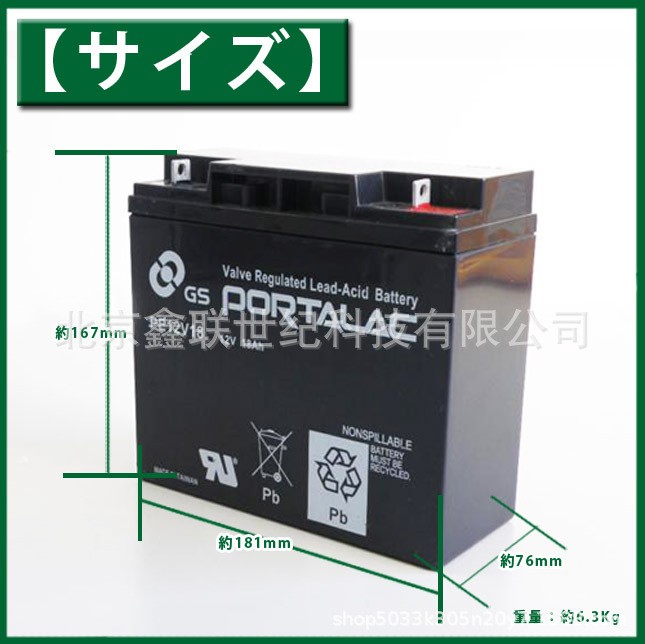

TEV12180 | 12 | 18 | 181±1 | 76±1 | 167±1 | 167±1 | 6.70 | B1-a | O |
TEV12210 | 12 | 21 | 181±1 | 76±1 | 167±1 | 167±1 | 7.24 | B2-b | O |
TEV12260 | 12 | 26 | 175±1 | 166±1 | 125±1 | 125±1 | 9.60 | B2-c | L |
TEV12360 | 12 | 36 | 195.6±2 | 130±2 | 154.8±2 | 178.5±2 | 12.00 | B2-a | N |
TEV12360A | 12 | 36 | 196±2 | 130±2 | 172±2 | 172±2 | 12.20 | B2-b | N |
TEV12500 | 12 | 50 | 197.5±2 | 165±2 | 170±2 | 170±2 | 16.00 | B2-b | O |
TEV12750 | 12 | 75 | 260±2 | 168±2 | 207±2 | 223±2 | 26.00 | B2-c | N |
GS PORTALAC TEV BATTERY
FREE POSITION, do not need to add water
Airtight manner with the negative electrode absorption method, the gas generated during charging, the plate absorb and restore, the reduction in the amount of the electrolyte is extremely low, the additional water is not required.
Moreover, since a special seal design, as long as not more than the inclination angle of 90 ° upright placed, regardless of how placed, can be safe to use.
Excellent lifetime characteristics
The positive electrode (anode) using a specially constructed grid, the use of special alloys, corrosion resistance superior long life 6 years. (0.25CA load, temperature 25 ° C)
Excellent capacity retention characteristics
Suppressing the self-discharge of the battery, the battery electrical energy consumption to a minimum in the internal battery.
Place (25 ° C) when the 6-month self-discharge rate of about 18% state of charge.
Excellent charging efficiency
Charging method using a constant voltage charging method, the initial charging larger current to charge the battery, and the charging current when charging nearing completion will automatically become smaller, the charging efficiency.
PCL (early low capacity) to prevent countermeasures, plug the charger set to 105% to 110% of the amount of discharge.
