商品描述

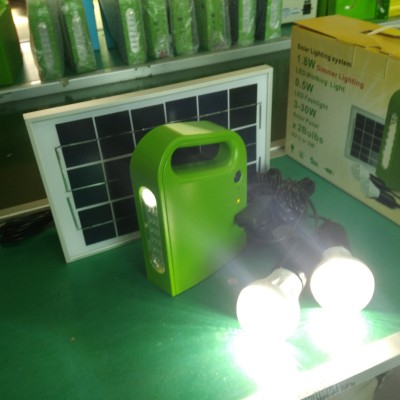

锂电池规格太阳能发电系统 3W款式
a) 3.7V 4400MAH锂电池
b) 3W多晶太阳能板
c) 2个2W LED灯泡
d) 1PC USB手机充电线 （选配： 根据数量，另外加 2元-4元）
e) 0.5W手电筒功能
f) 1.8W LED工作灯带100%-66%-33%三档调光功能
g)一个按键控制所有功能
h) 10A可插拔式保险丝（运输中断电，使用时插上）
2)内置3A太阳能充电保护控制器 | |||
最大充电电流 | 2A (最大20W太阳能充电) | ||
最大DC输出负载电流 | 3A | ||
保护电路 | 电池过充电保护，电池低压切断保护，,太阳能板反接充电保护，短路保护，涓流充电等。 | ||
充电指示灯 | 绿色LED指示灯 | ||
电池电量指示灯 | 三个橙灯亮--- > 3.8V (> 75%电量以上); 2个橙灯亮--- 3.6V – 3.8V (30% - 75%电量) 1个橙灯亮 --- 3.4V – 3.6V (10-30%电量) | ||
电池低压切断点 | 3.4V | ||
电池过充电保护点（涓流充电电压点） | 4.2V | ||
负载指示灯 | 绿色LED指示灯（灯亮-代表有负载输出） | ||
3) DC 2W LED灯泡参数 | |||
LED数量和规格 | 4PCS 0.5W 2835 LED（色温6000-7000K） | ||
最大2W LED灯泡亮度 | 400流明 | ||
LED寿命 | >50,000小时 | ||
LED灯规格 | 恒流LED或随电池电压变化的2W LED灯泡 | ||
LED灯泡线长 | 3M | ||
4) USB 5V输出功能 | |||
最大5V输出电流 | 最大. 5V 1000mA | ||
手机充电类型 | 所有手机都可以充电（IPHONE等都可以） | ||
5)重要提示 | |||
1）海运运输过程中，请将10A保险丝拔掉。这样锂电池将完全断电，可以防止太阳能系统自放电等保护。同时由于完全断电，锂电池系统即使在仓库放置1年，只需要重新插上保险丝就可以正常充电使用。 | |||
2）最终用户收到货时，请自行插上保险丝，先进行充电6-8小时。 | |||
3）太阳能板充电要面向南方的太阳，不能有任何阻挡。为了保证好的使用效果，请用干布清理太阳能板表面的灰尘。 | |||
1) Feature
a) 3.7V 4400MAH LI-ION battery
b) 3W (6V) poly type solar panel
c) 2PCS 1W LED bulbs with ON/OFF switch and E27 holder
d) 1PC USB charging cable
e) with Solar charging LED indication, Battery capacity LED indication and Load LED indication
f) AC/DC 9V 500MA adapter charging (optional)
2) solar charge controller inside this system | |||
Max. solar charging input current | 1.5A (Max 15W solar panel type) | ||
Max. DC ouput load current | 3A | ||
Protection circuit | Battery over charging cut off protection, battery low voltage cut off protection, battery reverse polarity protection, solar panel reverse polarity protection, | ||
Charging LED indicator | Green LED light – Charging | ||
Battery LED indicator while no solar charging input | Green LED light --- Above 3.8V (> 75% capacity); Amber LED light --- 3.6V – 3.8V (25% - 75% Capacity) Red LED light --- 3.4V – 3.6V (10-25% Capacity) | ||
Battery Low voltage cut off point | 3.4V | ||
Battery LED indicator while solar charging input | Green LED light --- 4.2V Amber LED light --- 4.0V – 4.2V Red LED light --- <4V | ||
Load LED indicator | Green LED light – With output in load Green LED don’t light – without output in load | ||
3) DC 1W LED bulb with E27 holder and ON/OFF switch | |||
LED quality and No.s in one bulb | 4PCS 0.5W Epistar brand 5730 LED and make it as 1W LED bulbs type | ||
1W LED bulb’s brightness | 400 lumens | ||
LED serving life | More than 50,000 hours | ||
LED color temperature | 6000-6500K | ||
lighting angle | 360 degree | ||
Bulb socket type | E27 | ||
4) USB 5V output feature | |||
Two USB 5V output port current | MAX. 5V 1000mA output | ||
USB cables | For all kinds of mobilephones charging use such as Iphone, Nokia, and Samsung etc. | ||
